RGB controller

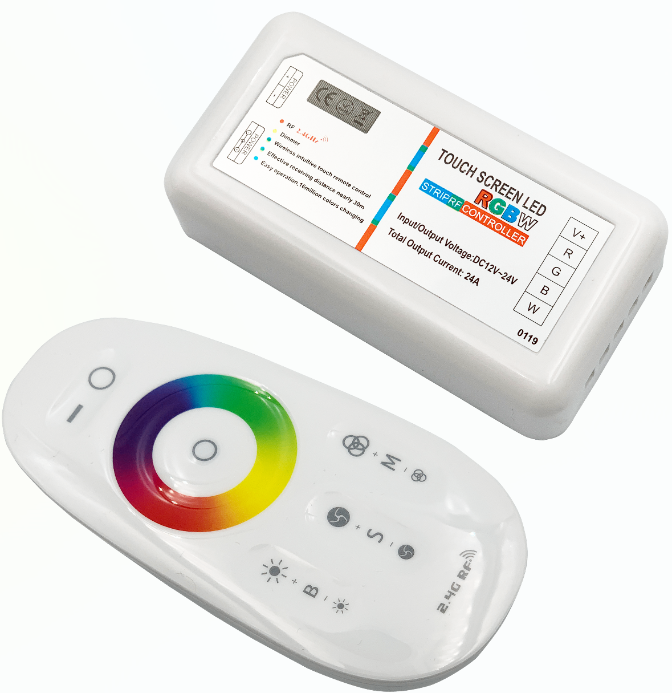

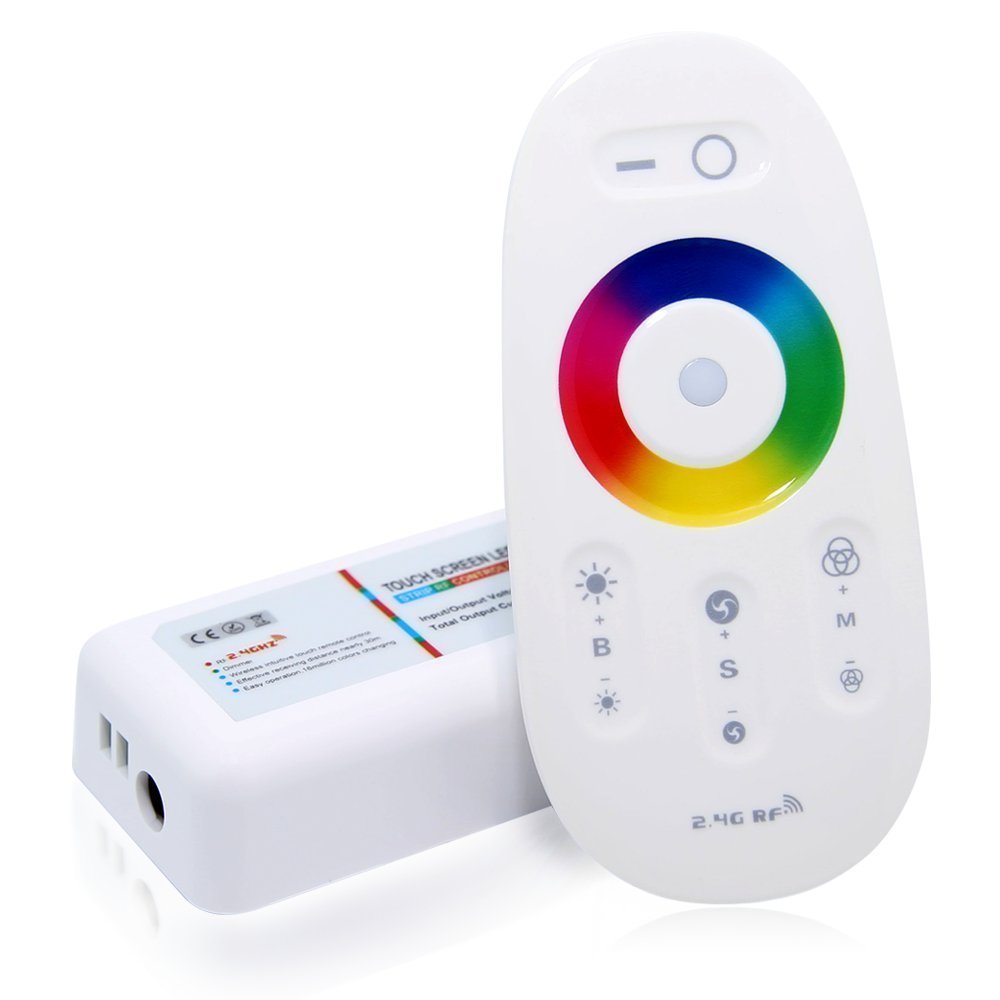

2.4g RGB/RGBW LED controller for neon LED strips
This one is 2.4G RGB/RGBW controller.
Product overview
- This 2.4g wireless full touch remote RGB/RGBW LED controller adopted the advanced touch technology.
- It is used to control all kinds of constant voltage DC12V or DC24V led products such as LED strip, LED module, wall washer LED, LED panel and so on.
- Users can choose different colors and different effect modes, adjusting the speed and brightness, turning on/off by the remote control according to their needs .
- This controller is with power off memory function and short circuit protection function
- Users can realise static color, jump, fade and other effects.
- Agile wiring, easy connection and simple to use.
- The biggest feature is that the remote distance is longer than RF 433Mhz.
- CE &RoHS certificated.
Product parameters
Input voltage | DC12-24V |
Output voltage | DC12-24V |
Output channel | 3 channels R/G/B or 4 channels R/G/B/W |
Connection mode | common anode |
Output current | 3*6A or 4*6A |
Controller housing | Plastic material |
Remote housing | Plastic material |
Remote distance | About 20M |
Remote color | White |
Package | Colorful box or customized box |
Carton box info | 100pcs/carton; 12.5kgs/carton |

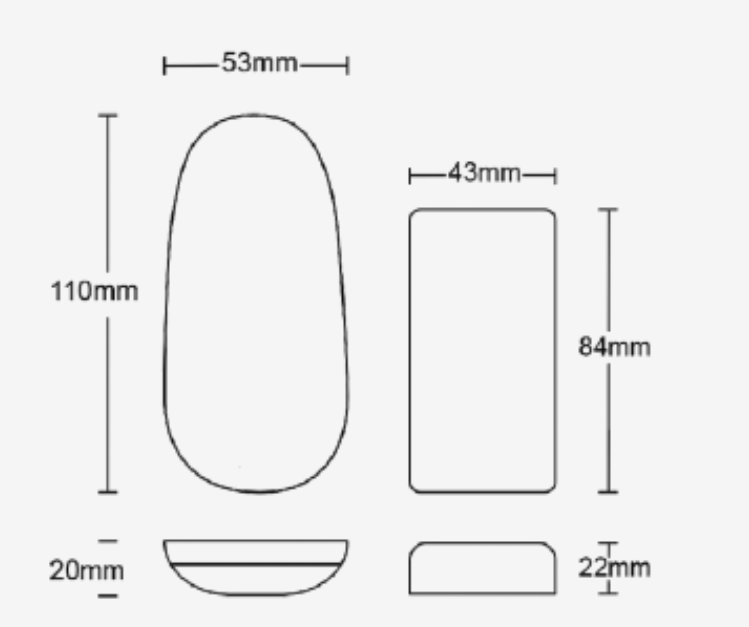

Product size
Product connection

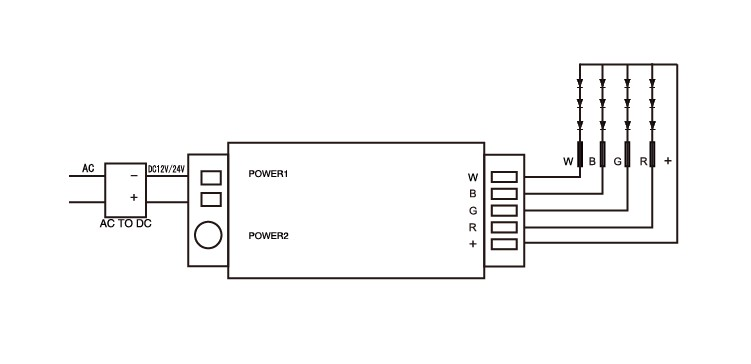

- Please take below diagram to make sure your connections are correct before you turn on. Please avoid short circuit.
- Please don't be overloaded otherwise product will be burn out.
- Factory setting is commom code(Also called general code). It is ok to switch into matched code（ Also called paired code). If you don't know the difference, please visit our website BLOG for knowledge. The link is : https://www.deccoho-lighting.com/posts/common-code-general-code-vs-matched-code-paired-code
