RGB controller

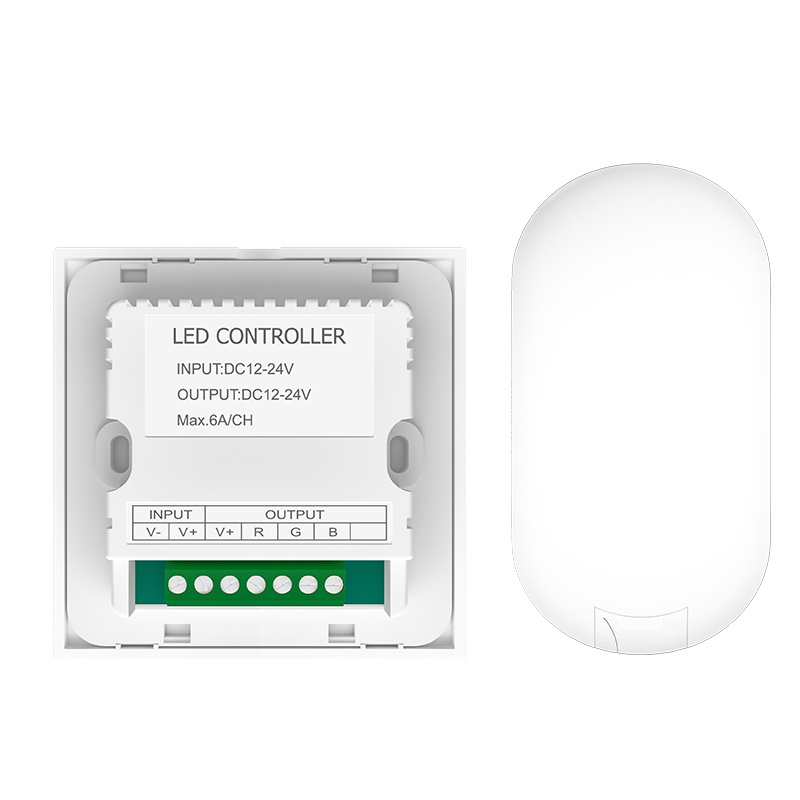

2.4G 86*86 touch panel RF remote RGB LED controller
This touch panel RGB LED controller is perfect for controlling DC12V or DC24V LED source such as LED strips, LED module , LED panel and etc. with a RF touch remote.
Product overview
- This FR wireless full touch remote RGB LED controller adopted the advanced touch technology.
- It is used to control all kinds of constant voltage DC12V or DC24V led products such as LED strip, LED module, wall washer LED, LED panel and so on.
- Users can choose different colors and different effect modes, adjusting the speed and brightness, turning on/off by the remote control according to their needs .
- This controller is with power off memory function and short circuit protection function
- Users can realise static color, jump, fade, strobe and other effects.
- Agile wiring, easy connection and simple to use.
- The biggest feature is that the touch panel controller body combining knobing dimming and display screen.
- CE &RoHS certificated.
Product parameters
Input voltage | DC12-24V |
Output voltage | DC12-24V |
Output channel | 3 channels R/G/B |
Connection mode | common anode |
Output current | 3*6A |
Controller housing | Plastic material |
Remote housing | Plastic material |
Remote distance | About 30M |
Remote color | White |
Package | White box or customized box |
Carton box info | 50pcs/carton; 8kgs/carton |

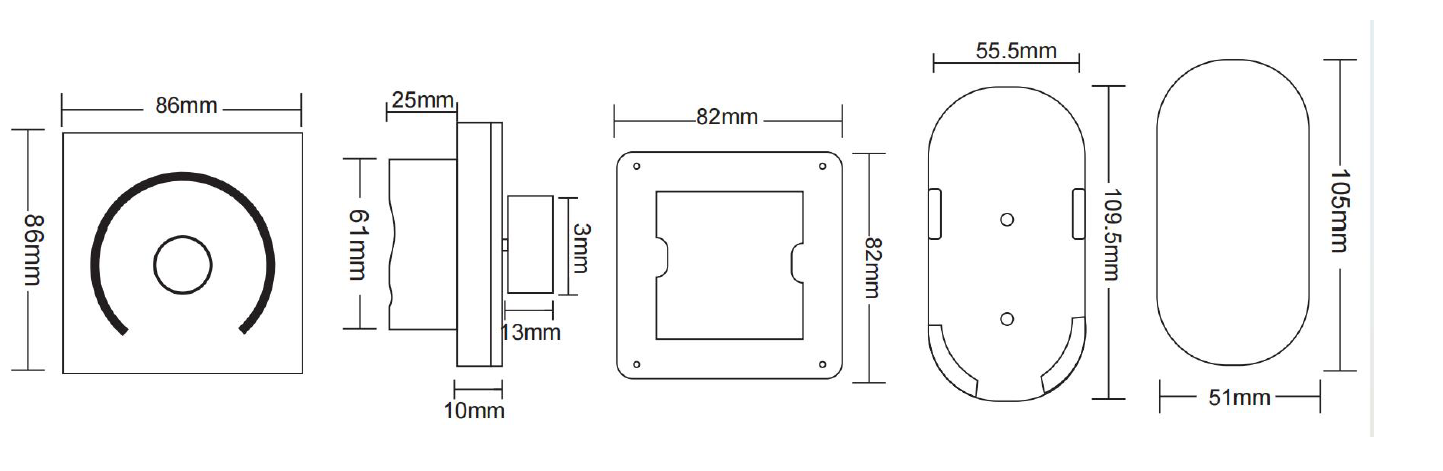

Product size

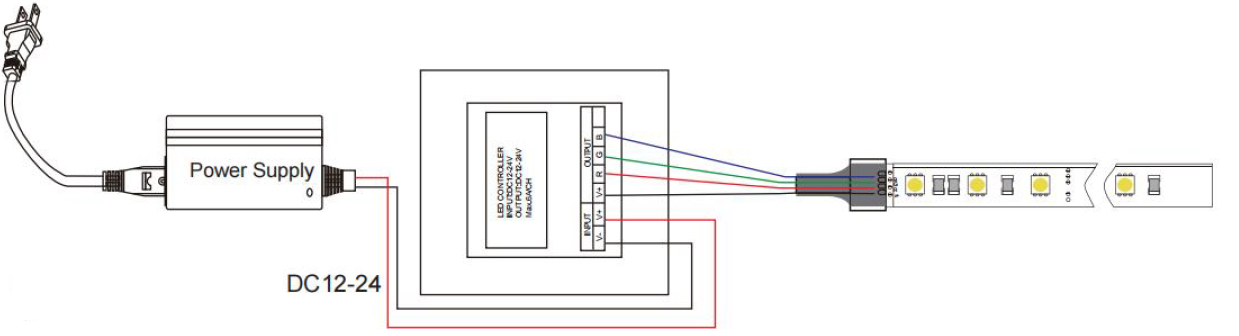

Product connection
- Please take below diagram to make sure your connections are correct before you turn on. Please avoid short circuit.
- Please don't be overloaded otherwise product will be burn out.
