RGB controller
RF 433Mhz wireless touch RGB LED controller for RGB COB LED strip
This RF wireless RGB LED controller is perfect for controlling DC12V or DC24V LED source such as LED strips, LED module , LED panel and etc.
Product overview
- This FR 433Mhz wireless full touch remote RGB LED controller adopted the advanced touch technology.
- It is used to control all kinds of constant voltage DC12V or DC24V led products such as LED strip, LED module, wall washer LED, LED panel and so on.
- Users can choose different colors and different effect modes, adjusting the speed and brightness, turning on/off by the remote control according to their needs .
- This controller is with power off memory function and short circuit protection function
- Users can realise static color, jump, fade, strobe and other effects.
- Agile wiring, easy connection and simple to use.
- The biggest feature is the most classic model and popular in all around the world.
- CE &RoHS certificated.
Product parameters
Input voltage | DC12-24V |
Output voltage | DC12-24V |
Output channel | 3 channels R/G/B |
Connection mode | common anode |
Output current | 3*6A/ 3*8A optional |
Controller housing | Iron material |
Remote housing | Plastic material |
Remote distance | About 20M |
Remote color | Black and white optional |
Package | Colorful box or customized box |
Carton box info | 50pcs/carton; 18kgs/carton |

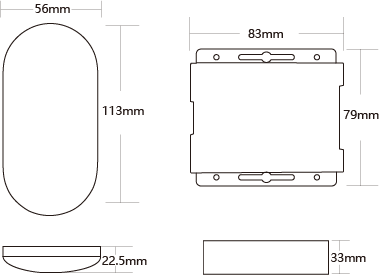

Product size

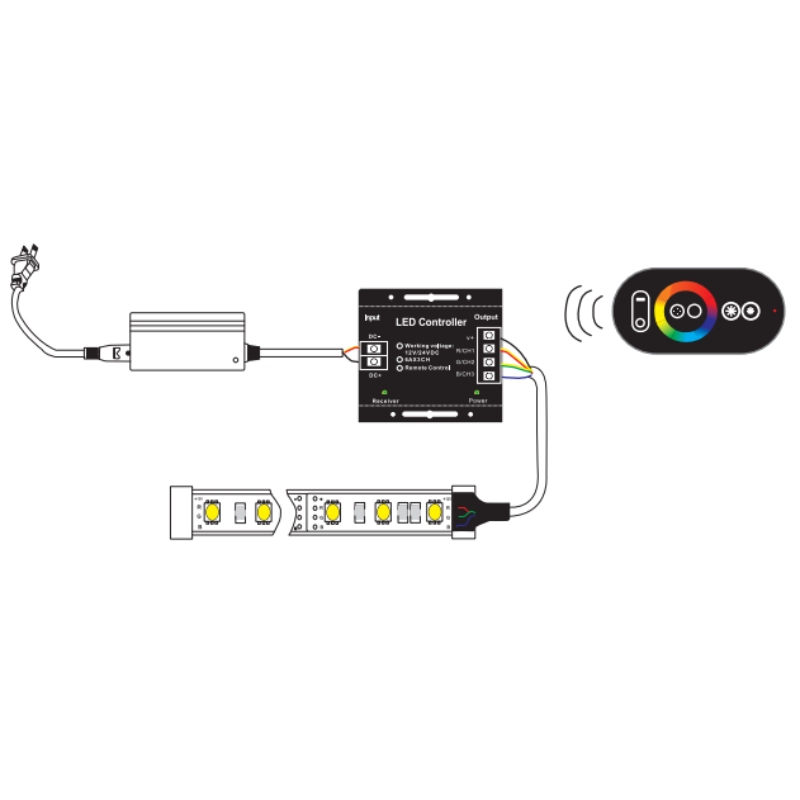

Product connection
- Please take below diagram to make sure your connections are correct before you turn on. Please avoid short circuit.
- Please don't be overloaded otherwise product will be burn out.
- Factory setting is commom code(Also called general code). It is ok to switch into matched code（ Also called paired code). If you don't know the difference, please visit our website BLOG for knowledge. The link is : https://www.deccoho-lighting.com/posts/common-code-general-code-vs-matched-code-paired-code
Thanks for your reading, for full catalog and detailed product info for other models, please contact our team(https://deccoho-lighting.com/contact). Welcome your order.
