LED dimmer
RF wireless remote LED dimmer for COB LED strip
This single color LED dimmer is perfect for controlling single color DC12V or DC24V LED source such as LED strips, LED module , LED panel and etc. with a 3 keys RF remote.
Product overview
- This FR 433Mhz wireless 3 keys remote single color LED dimmer adopted the advanced touch technology.
- It is used to control all kinds of constant voltage DC12V or DC24V single color led products such as LED strip, LED module, wall washer LED, LED panel and so on.
- Users can adjust the brightness, turning on/off by the remote control according to their needs .
- This dimmer is with power off memory function and short circuit protection function
- Users can change the brightness smoothly without any flicker.
- Agile wiring, easy connection and simple to use.
- The biggest feature is that this LED dimmer is very high power. 3*30A.
- CE &RoHS certificated.
Product parameters
Input voltage | DC12-24V |
Output voltage | DC12-24V |
Output channel | PWM |
Connection mode | common anode |
Output current | 3*30A |
Controller housing | Iron material |
Remote housing | Plastic material |
Remote distance | About 20M |
Remote color | Black |
Package | White box or customized box |
Carton box info | 50pcs/carton; 12.5kgs/carton |

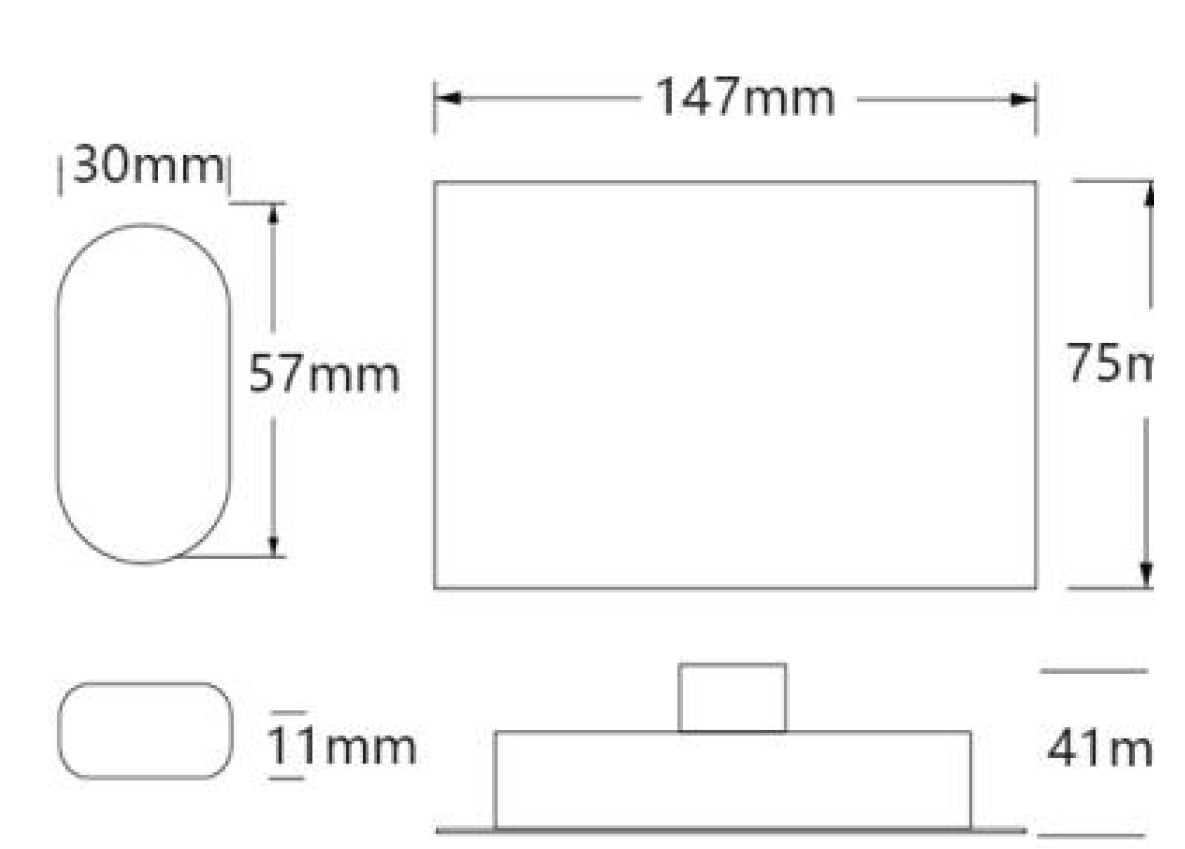

Product size

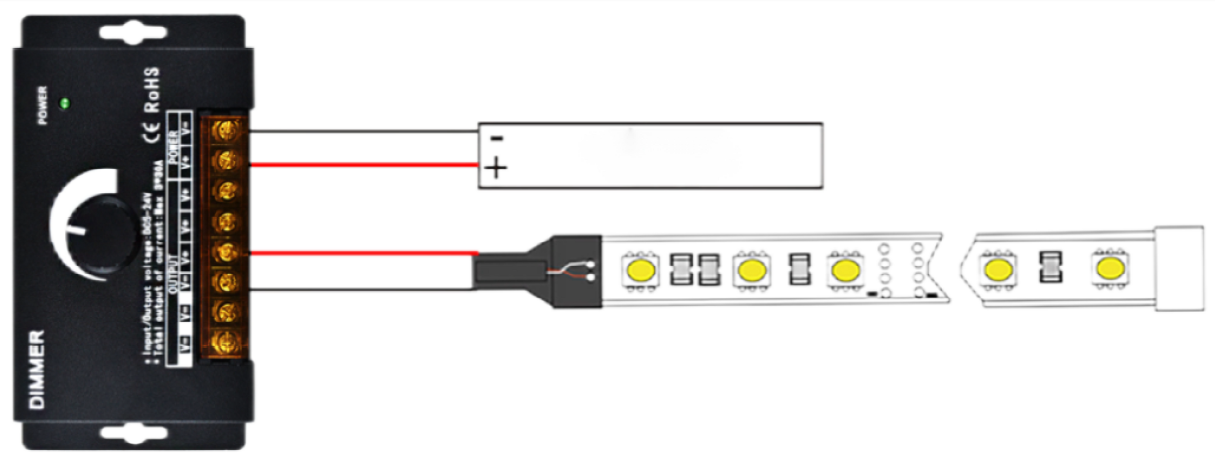

Product connection
- Please take below diagrams to make sure your connections are correct before you turn on. Please avoid short circuit.
- Please don't be overloaded otherwise product will be burn out.
Thanks for your reading, for full catalog and detailed product info for other models, please contact our team(https://deccoho-lighting.com/contact). Welcome your order.
