LED dimmer
IR 6 keys single color LED dimmer factory
This 6 keys IR remote single color LED dimmer is perfect for controlling DC12V or DC24V LED source such as LED strips, LED module , LED panel and etc.
Product overview

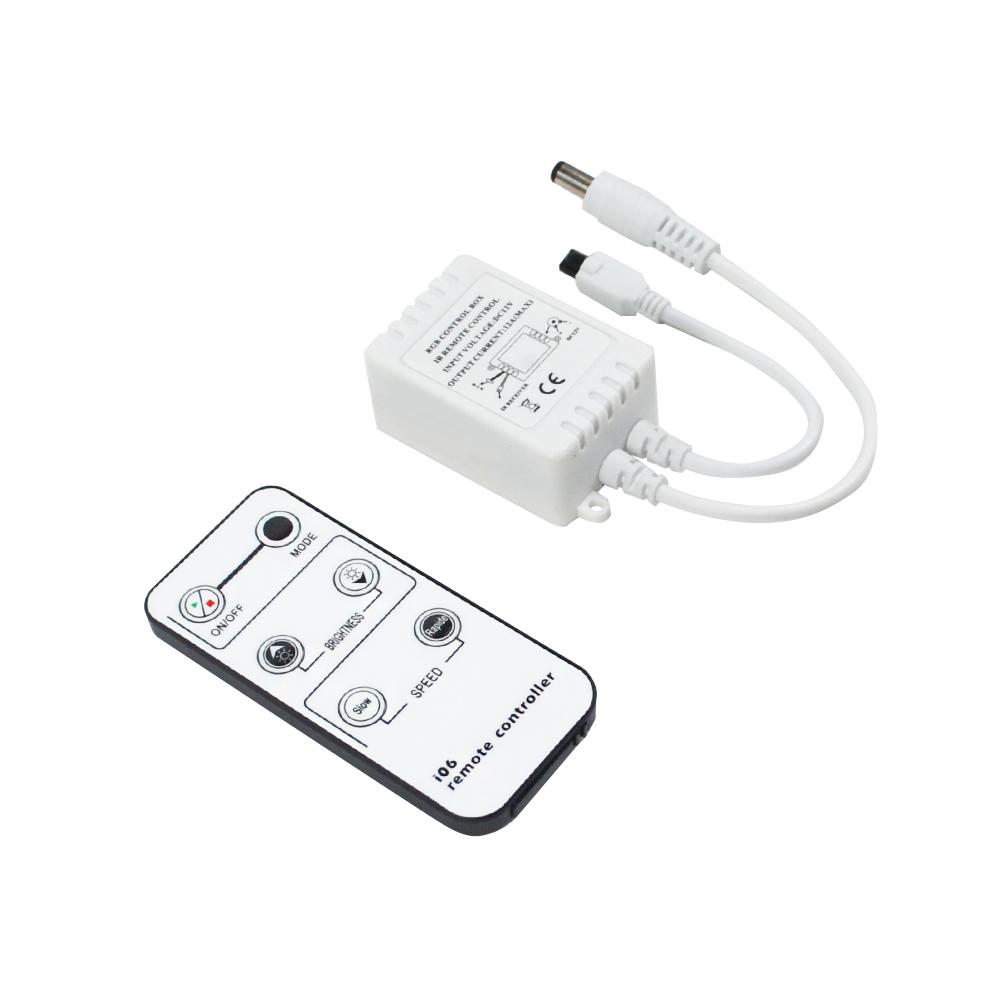

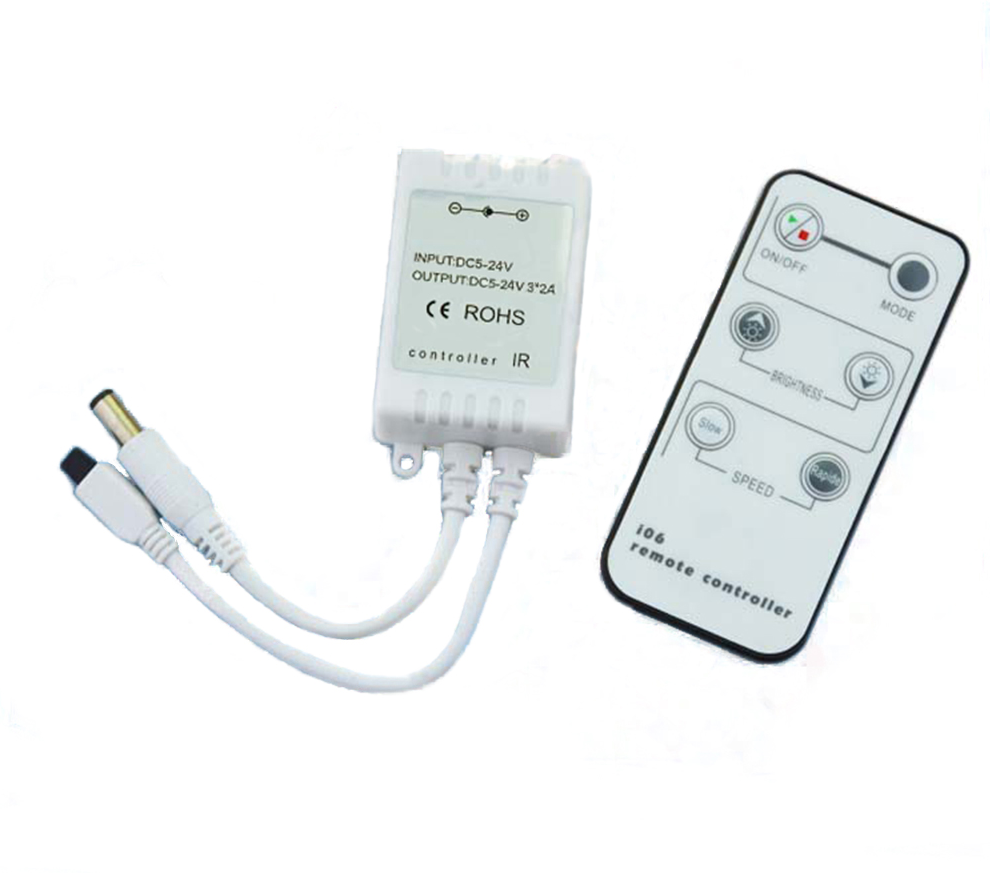

- This is a IR 6keys remote control LED dimmer.
- It is used to control all kinds of constant voltage DC12V or DC24V single color led products such as LED strip, LED module, wall washer LED, LED panel and so on.
- Users can achieve on/off, different mode, changing brightness and speed.
- This dimmer is with power off memory function and short circuit protection function.
- DC connector input, easy connection and simple to use.
- CE &RoHS certificated.
Product parameters
Input voltage | DC12-24V |
Output voltage | DC12-24V |
Output channel | 1 channel |
Connection mode | common anode |
Output current | 6A |
Controller housing | Plastic material |
Dimming method | IR remote |
Color | White |
Remote distance | About 3-5M |
Package | White box or customized box |
Carton box info | 50pcs/carton; 4.5kgs/carton |

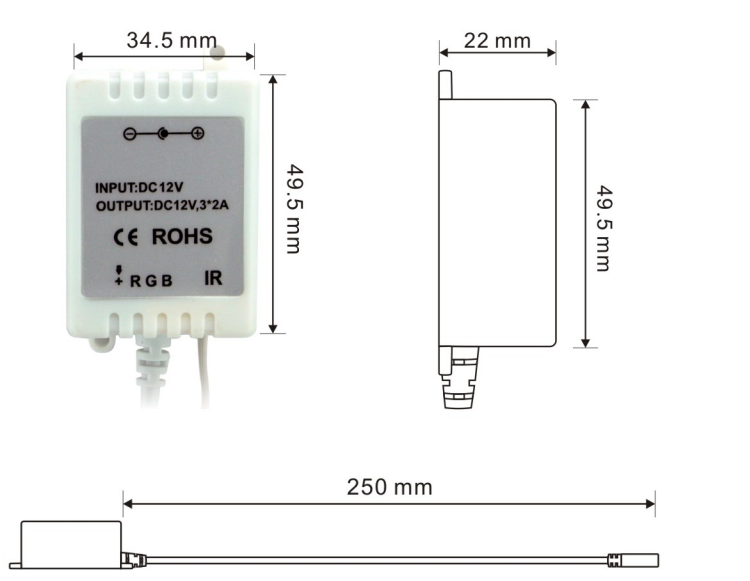

Product size

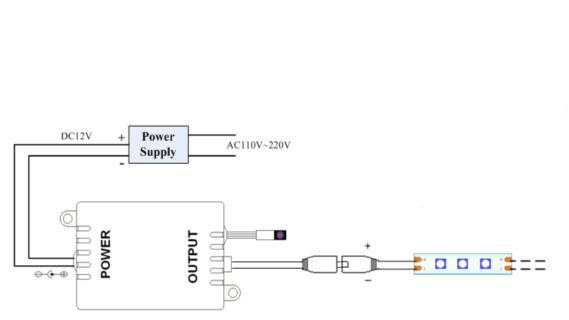

Product connection
- Please take below diagram to make sure your connections are correct before you turn on. Please avoid short circuit.
- Please don't be overloaded otherwise product will be burn out.
Thanks for your reading, for full catalog and detailed product info for other models, please contact our team(https://deccoho-lighting.com/contact). Welcome your order.
