LED sensor

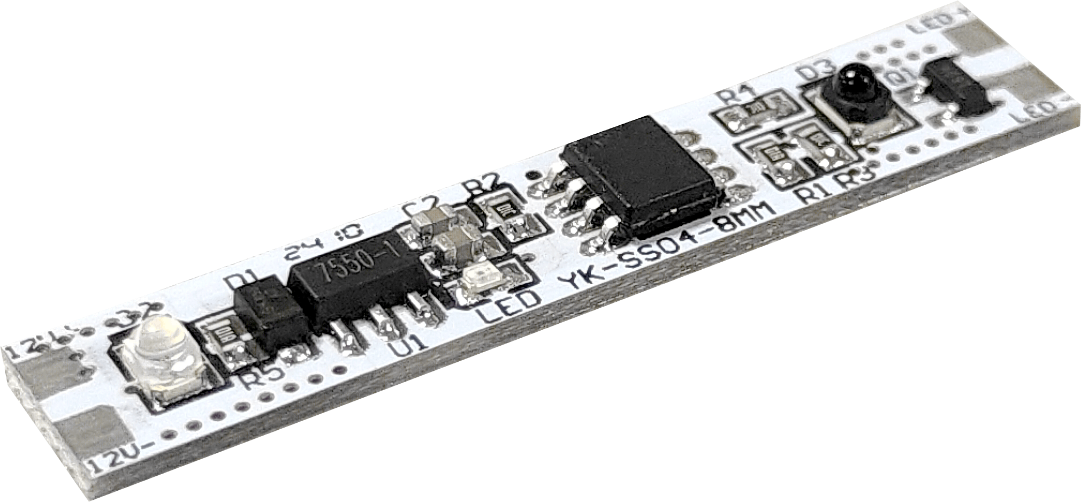

IR switch hand move LED sensor for wardrobe
This is a DC12V hand move sensor for led strips. Mainly used in cabinet or wdrobe and etc.
Product overview
- Mini size and easy installation for cabinet or wardrobe and etc.
- Suitable for installation in an aluminum profile.
- Allows to control of a monochrome DC12V or DC24V LED strip.
- The degree of protection against dust and moisture complies with the IP20 standard, which means that the device should be installed in a dry, ventilated room.
- With Indicator light to show the working status.
- Dimming stepless and with memory function.
- CE&RoHs certificated.
Product parameters
Working voltage | DC12-24V |
Output current | 5A Max. |
Detection way | hand move |
IP class | 20 |
PCB width | 48*8MM |
PCB type | Double-layer |
Detection range | 30°/0-8CM |
Drilling size | No need |
Wire leading | with or without optional |
Product functions
Sweeping your hands or an object within detection range can switch between ON and OFF. In the on state, dimming starts when the dwell time is more than 1 second. If this time dimming is brighter, move away and dwell again to make it darker.
Product applications
- Cabinet and Furniture Lighting This is the most common use case. Under-Cabinet Lights: It is often installed inside aluminum LED profiles. The spring touches the plastic (PC) cover, allowing you to turn the kitchen lights on/off or dimming. Wardrobes and Closets: It can be hidden behind a thin wood panel or plastic casing, keeping the design clean without visible mechanical buttons.
- Smart Mirrors (Bathroom & Makeup Mirrors) The spring presses against the back of the glass, allowing the user to control the light .
- Minimalist & DIY Lamp Design Invisible Switching: lamps made of wood, acrylic, or 3D-printed materials. Stepless Dimming: perfect for bedside reading lamps.
- Commercial Displays and Showcases Jewelry & Watch Displays: Used in high-end retail displays where a physical switch would look bulky. A salesperson can simply touch a specific spot on the glass or the display stand to highlight a product.
- RVs, Yachts, and Automotive Interiors Compact Lighting Control: it is ideal for the interior lighting of motorhomes or boats where space is limited and a modern look is desired.
