COB LED strips
528 series free-cut DC24V COB LED strips for cabinet wardrobe

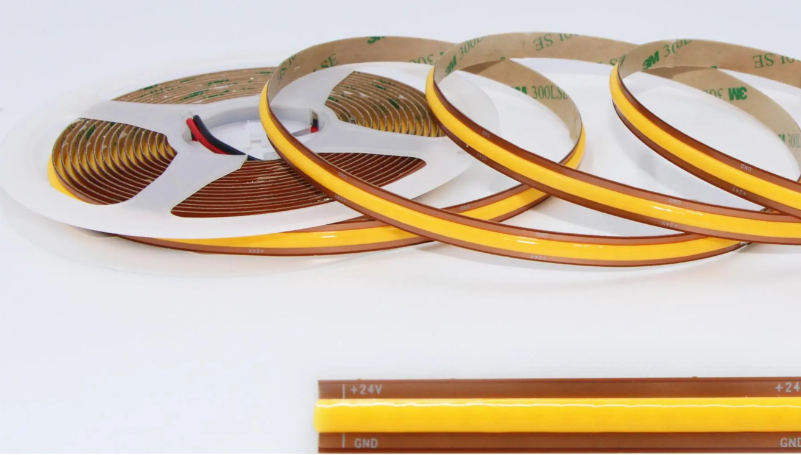

Introduction of DC24V free-cut 528COB LED strips.
Product Overview
- High-Density 528-Chip : Features a completely dot-free (spotless) illumination effect.
- High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
- Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
- DC12V or DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.
- Higher color rendering index(CRI 90+): It is perfect for displaying true color.
- SDCM<3 color consistency: Few color difference between batches.
- The biggest feature is free-cut or cut anywhere. The 'cut-anywhere' design eliminates the need for calculating specific cutting increments. Installers can cut the strip to the exact required length, greatly improving installation efficiency and avoiding wasting the materials.
- CE&Rohs certificated.

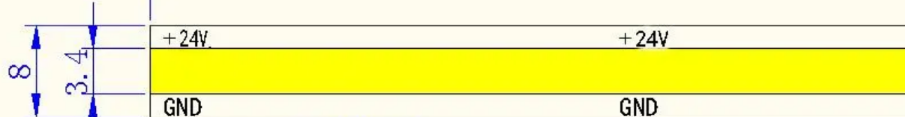

Product size( Take DC24V as example)
Product parameters
Input voltage | DC24V/DC12V optional |
Color temp. CCT | 3000K/4000K/6000K optional |
Cut length | free-cut |
CRI | 90+ |
LED quantity | 528LEDs/M |
PCB color | white( support to customize black or grey) |
PCB material | Double-layer electroplated FPC |
Beam angle | 180° |
Power | 14W/M |
wire lead | 15cm 20AWG Red/Black wires at both ends |
Luminous Efficacy | 100lm/W±10% |
Length per roll | 5m or customized length |
IP class | IP20/IP67 otpional |
PCB width | 8MM |
Package | static bag or customized package |

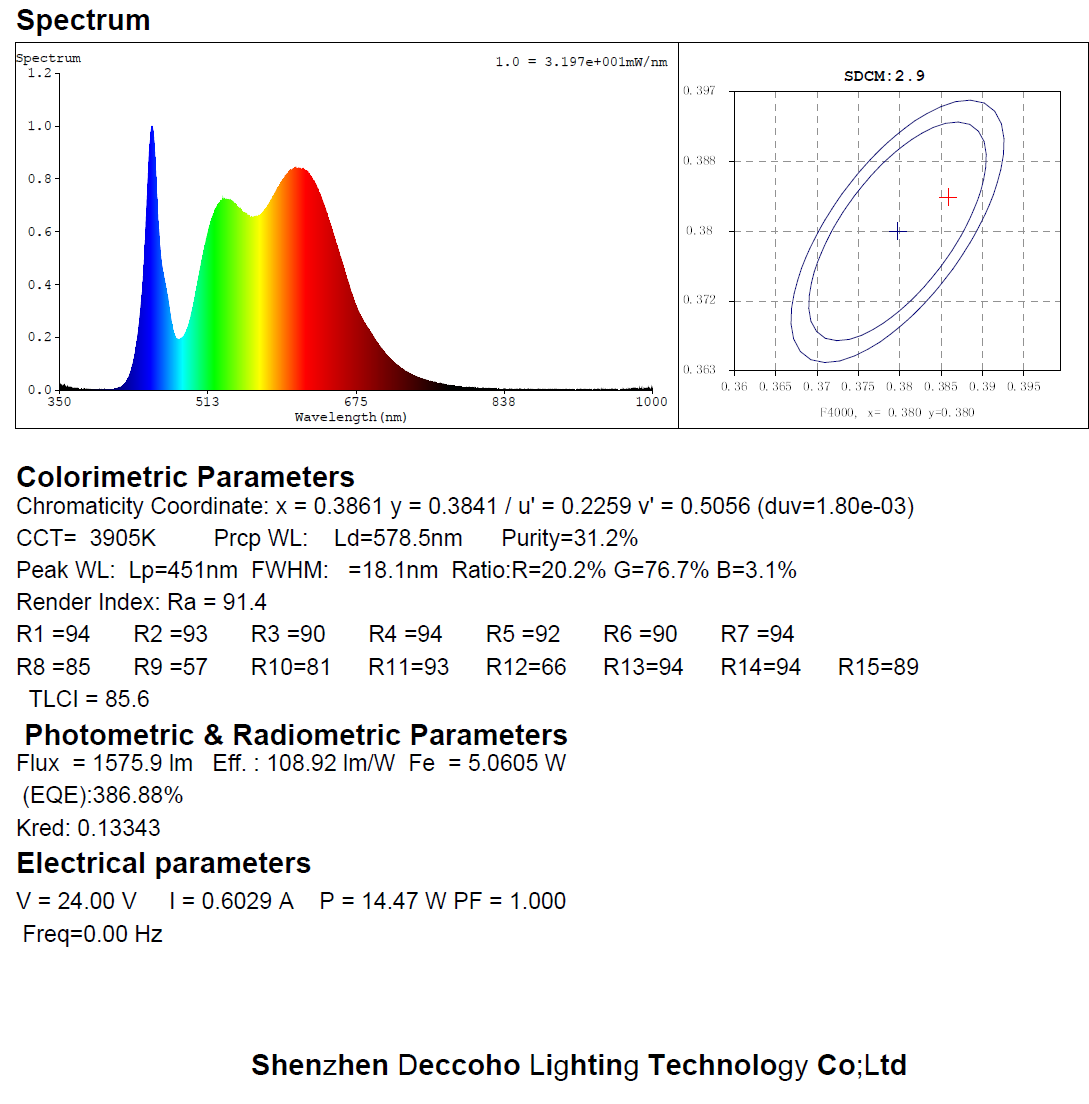

Product Spectrum Test Report
Product installation
①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.
②Please clean up the installation surface and stick the led strips on a clean and dry surface.
③Recommended minimum bending diameter > 1cm, as shown below:
Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
