420COB digital pixel DC24V RGB+IC COB LED strip for car ambient underglow
Intrpduction of DC24V 420COB RGB+IC digital COB LED strip.
Product Overview
- High-Density 420-Chip : Features a completely dot-free (spotless) illumination effect.
- High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
- Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
- DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.
- WS2811 IC number and 10 IC/M.
- SDCM<3 color consistency: Few color difference between batches.
- CE&Rohs certificated.

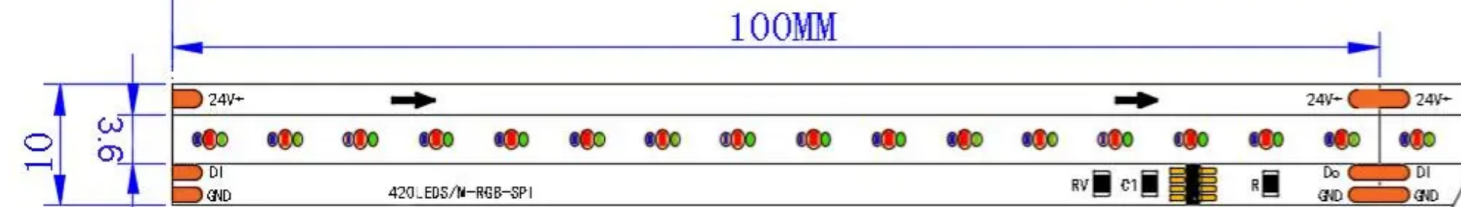

Product size( Take DC24V as example)
Product parameters
Input voltage | DC24V |
Color temp. CCT | RGB+IC |
Cut length | 100mm( DC24V) |
Wavelength | 630nm(red); 526nm(green); 457nm(blue) |
LED quantity | 420LEDs/M |
PCB color | white( support to customize black or grey) |
PCB material | Double-layer electroplated FPC |
Beam angle | 180° |
Power | 10W/M |
wire lead | 15cm RGB wires at both ends |
Luminous Efficacy | 100lm/W±10% |
Length per roll | 5m or customized length |
IP class | IP20/IP67 otpional |
PCB width | 8MM |
Package | static bag or customized package |

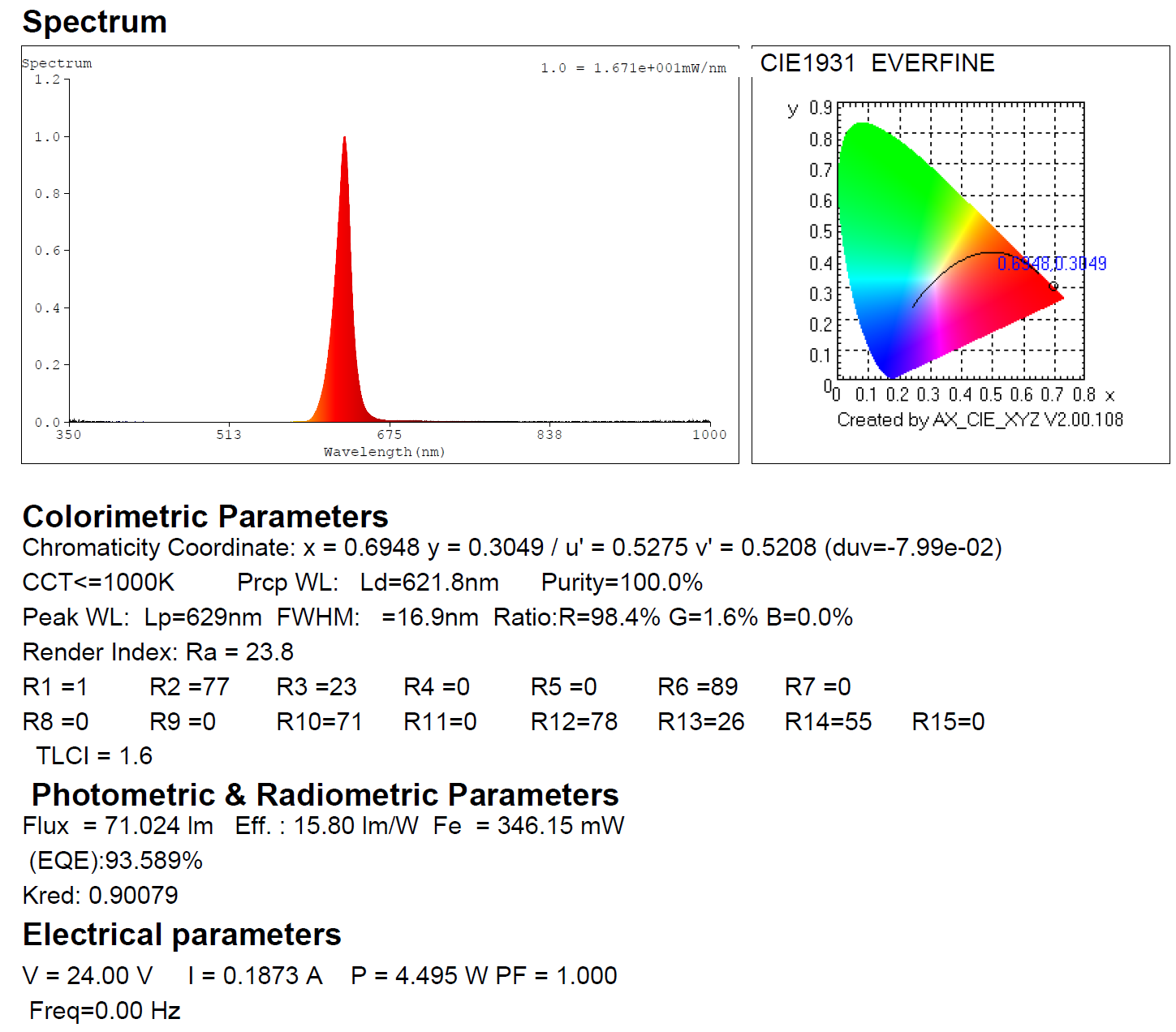

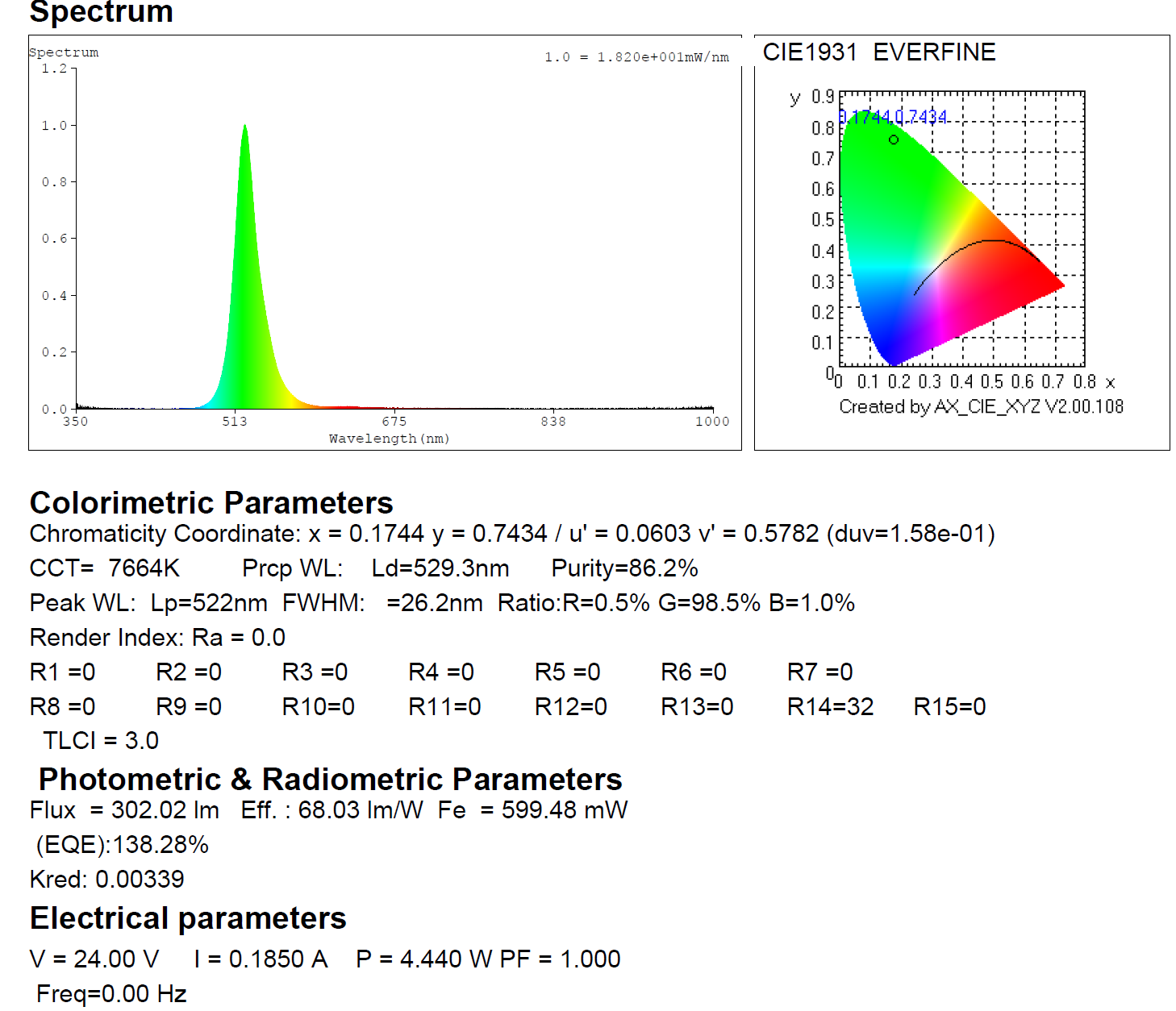

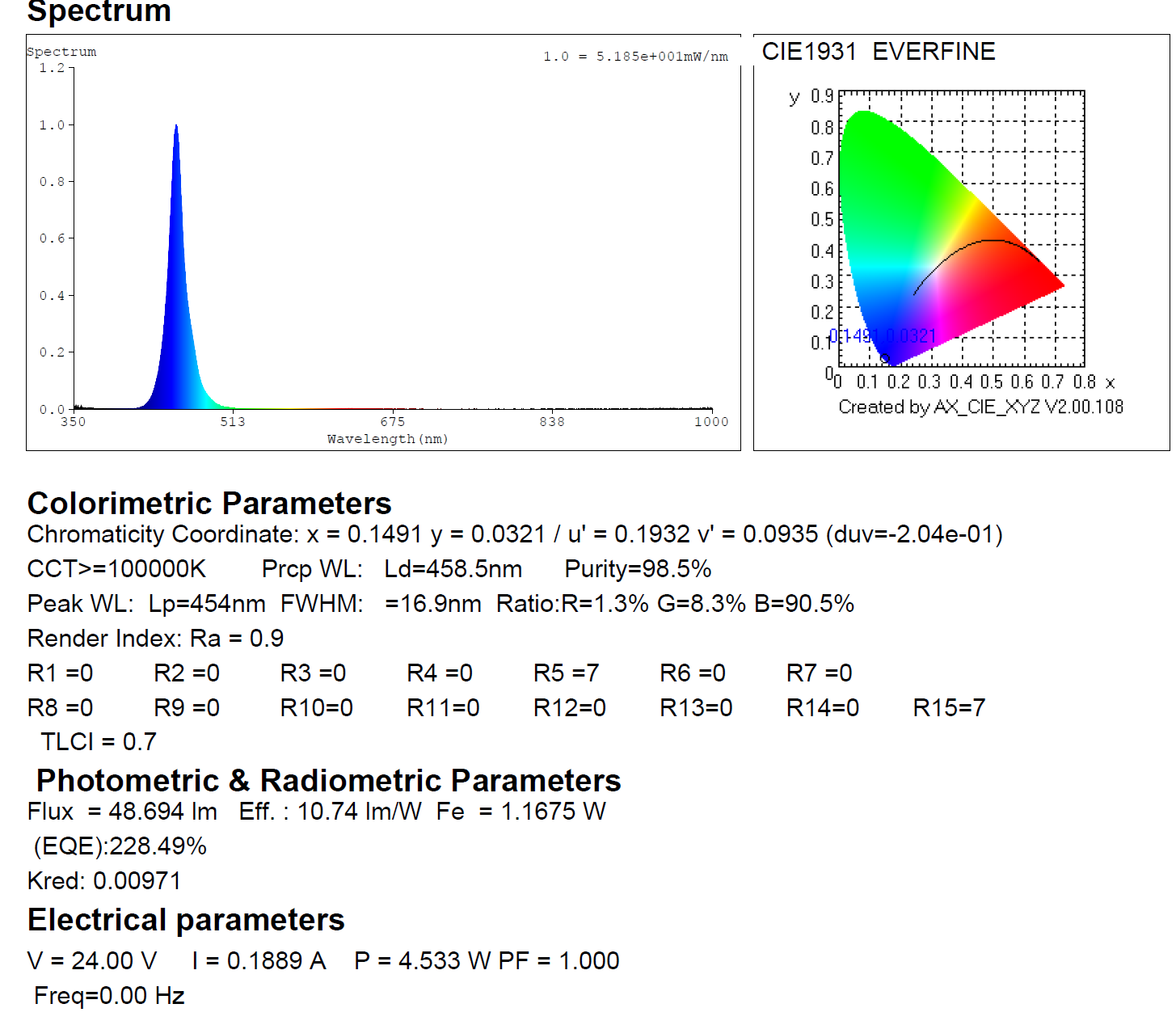

Product Spectrum Test Report
Product installation
①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.
②Please clean up the installation surface and stick the led strips on a clean and dry surface.

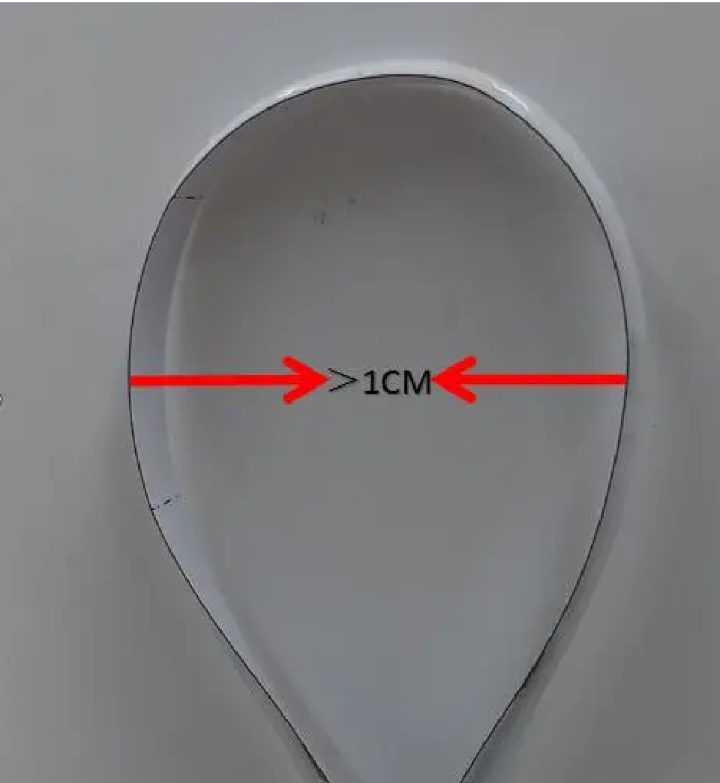

③Recommended minimum bending diameter > 1cm, as shown below:
Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
