COB LED strips

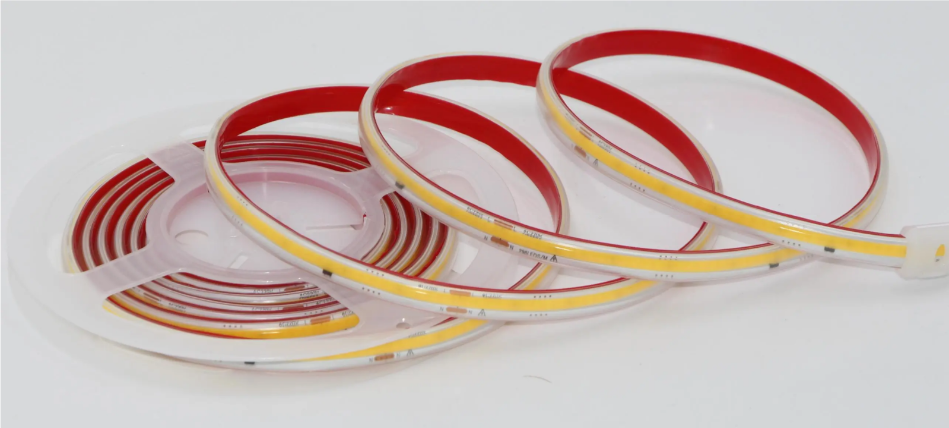

296 series high voltage AC220V driverless COB LED strip for outdoor lightings
Introduction of AC220V high voltage 296 series COB LED strips
Product Overview
- High-Density 296-Chip : Features a completely dot-free (spotless) illumination effect.
- High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
- Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
- Driverless design; Plug-and-play.
- Higher color rendering index(CRI 80+): It is perfect for displaying true color.
- CE&Rohs certificated.

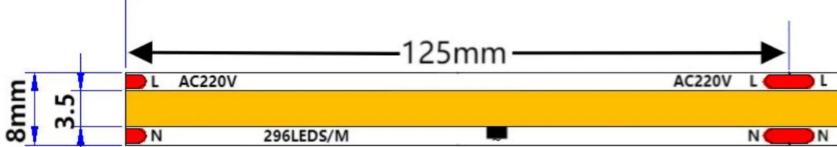

Product size( Take AC220V as example)
Product parameters
Input voltage | AC110V/AC220V optional |
Color temp. CCT | 3000K/4000K/6000K optional |
Cut length | 125mm(AC110V); 125mm( AC220V) |
CRI | 80+ |
LED quantity | 296LEDs/M |
PCB color | white( support to customize black or grey) |
PCB material | Double-layer electroplated FPC |
Beam angle | 180° |
Power | 10W/M |
wire lead | 15cm 20AWG Red/Black wires at both ends |
Luminous Efficacy | 90lm/W±10% |
Length per roll | 5m or customized length |
IP class | IP67 |
PCB width | 8MM |
Package | static bag or customized package |

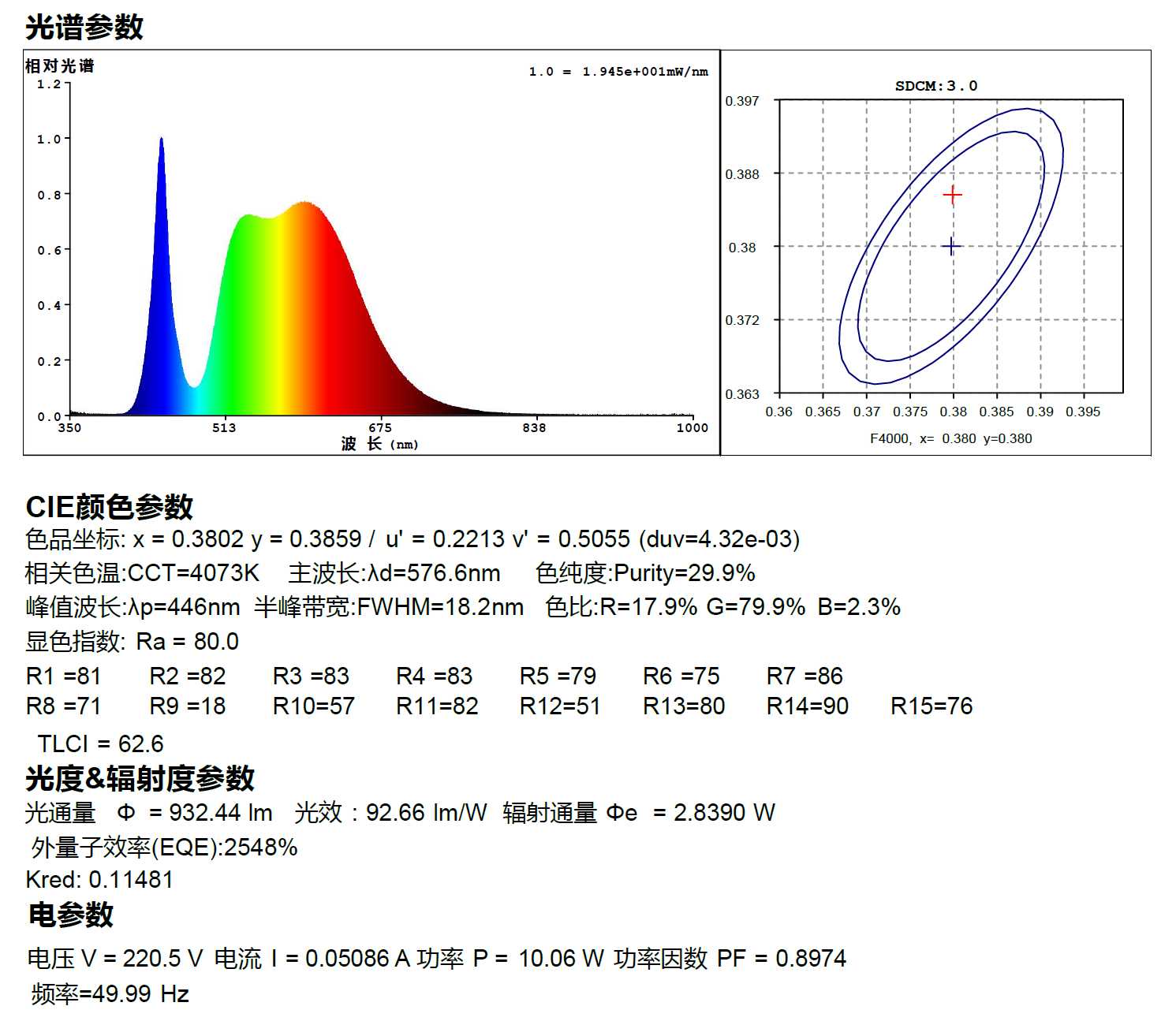

Product Spectrum Test Report

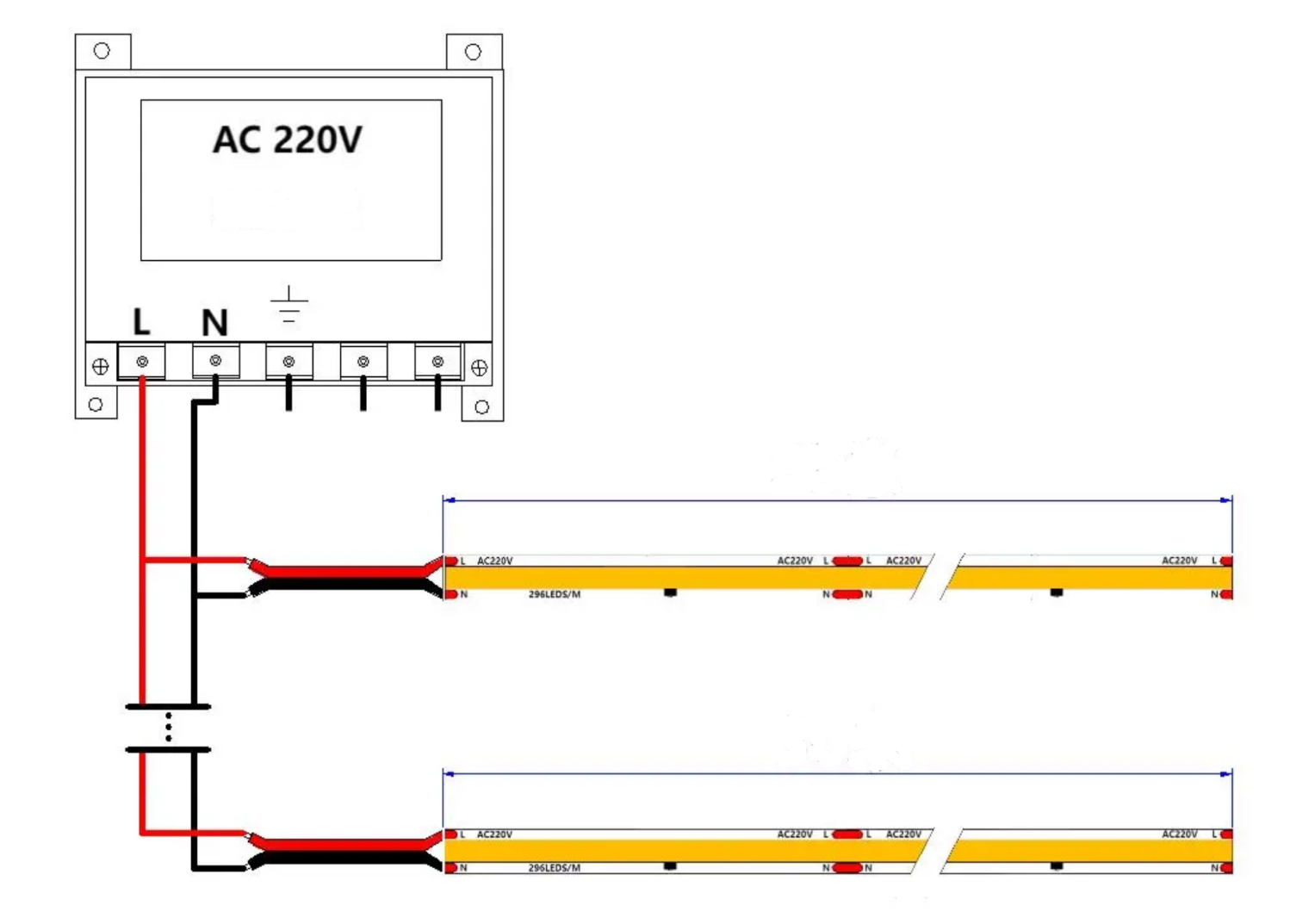

Product installation
①LED strip is high voltage product. Please ensure safe electrical connection.
②Recommended minimum bending diameter > 1cm, as shown below:
Thanks for your reading, for full catalog and detailed product info for other series, please contact our team(https://deccoho-lighting.com/contact). Welcome your order.
