608COB high CRI CCT dual white COB LED strips for Kitchen cabinetry wardrobes closets
Introduction of 608COB DC24V CCT dual white COB LED strips
Product Overview
- High-Density 608-Chip : Features a completely dot-free (spotless) illumination effect.
- High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
- Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
- DC12V or DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.
- For 608COB series, PCB width 5mm/8mm/10mm available.
- Input and output wires: 2 wires version and 3 wires version availble. For the difference, please visit our website link: https://www.deccoho-lighting.com/posts/output-with-2-wires-or-3-wires-how-to-choose-a-cct-dual-white-led-strips
- CCT dual white color is perfect for furniture decoration. They are widely used in cabinet,Wardrobe,bed,Wine Cabinet,Closet, crib, bathroom mirror,bookshelf, dresser,console table,Sideboard,staircase and etc. .
- Higher color rendering index(CRI 90+): It is perfect for displaying true color.
- SDCM<3 color consistency: Few color difference between batches.
10. CE&Rohs certificated.

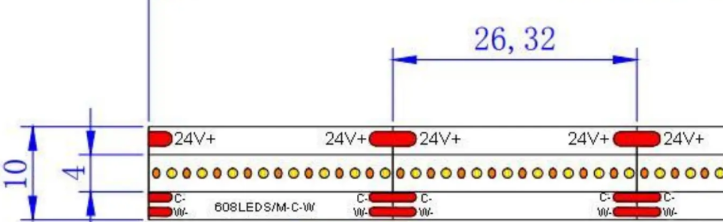

Product size( Take DC24V as example)
Product parameters
Input voltage | DC24V/DC12V optional |
Color temp. CCT | 2700-6500K |
Cut length | 26.32mm(DC12V); 26.32mm( DC24V) |
CRI | 90+ |
LED quantity | 608LEDs/M |
PCB color | white( support to customize black or grey) |
PCB material | Double-layer electroplated FPC |
Beam angle | 180° |
Power | 7+7W/M |
wire lead | 15cm 20AWG Red/Black wires at both ends |
Luminous Efficacy | 100lm/W±10% |
Length per roll | 5m or customized length |
IP class | IP20/IP67 otpional |
PCB width | 10MM |
Package | static bag or customized package |

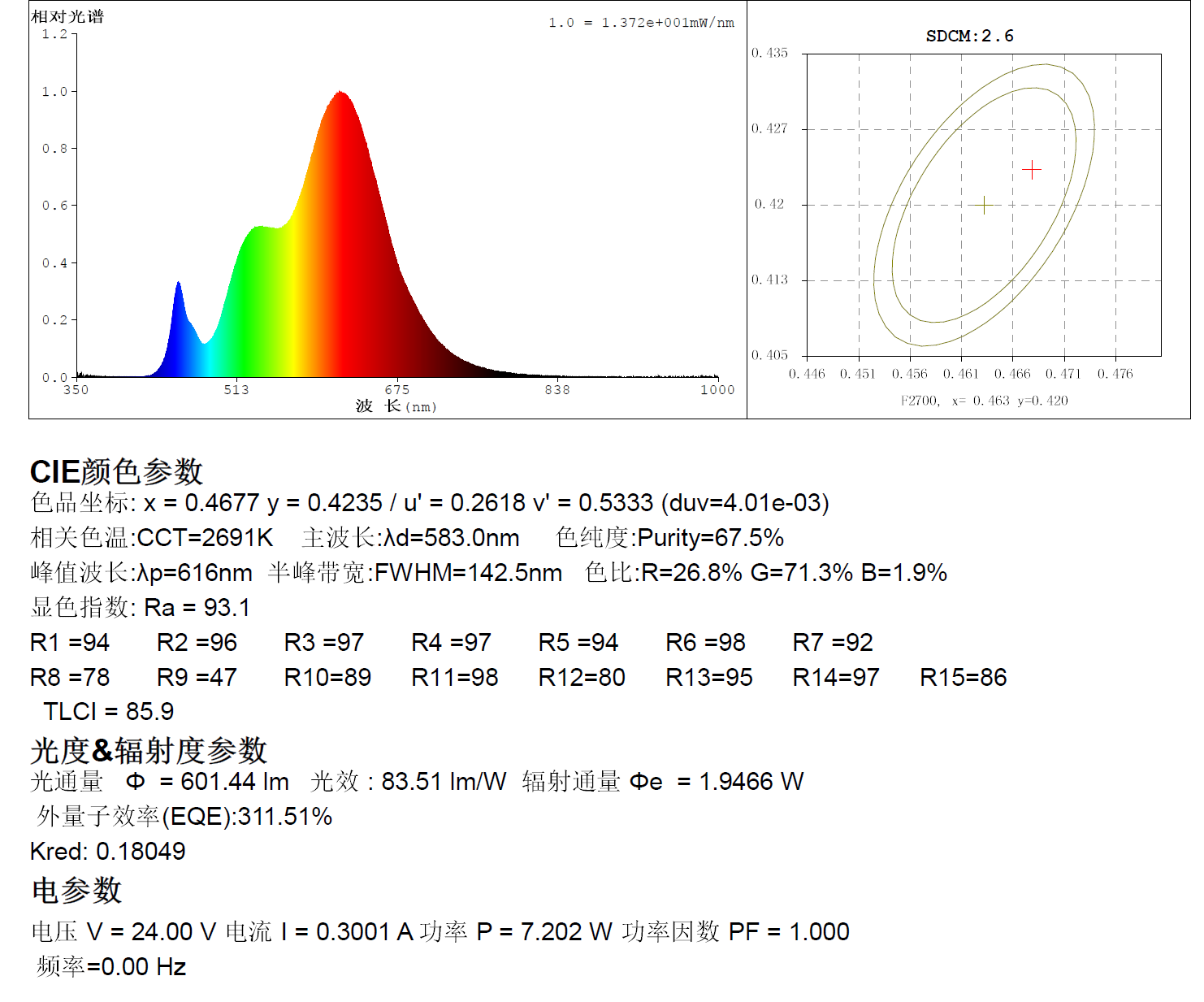

Product Spectrum Test Report
Product installation

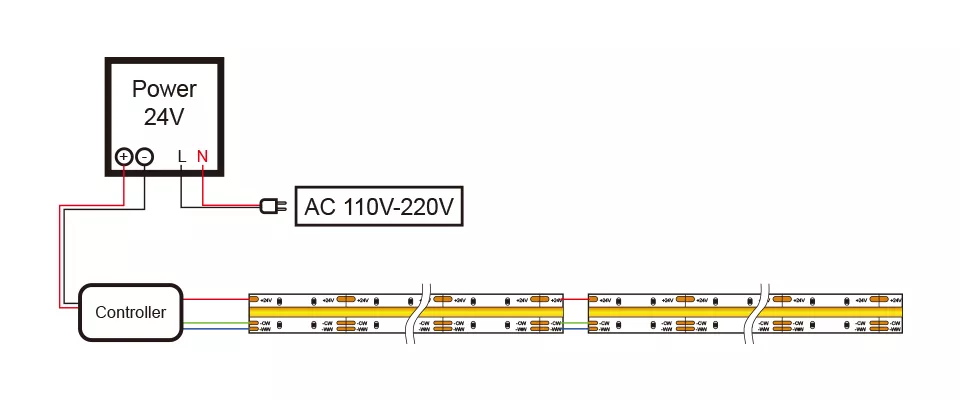

①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

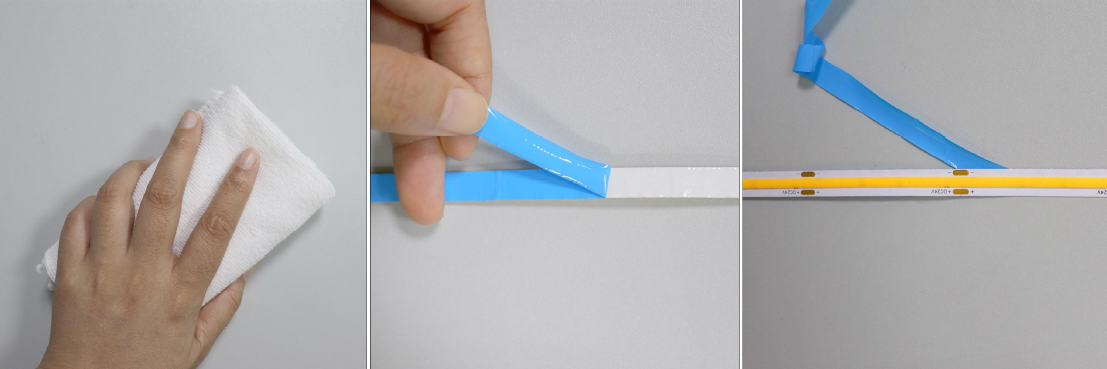

②Please clean up the installation surface and stick the led strips on a clean and dry surface.

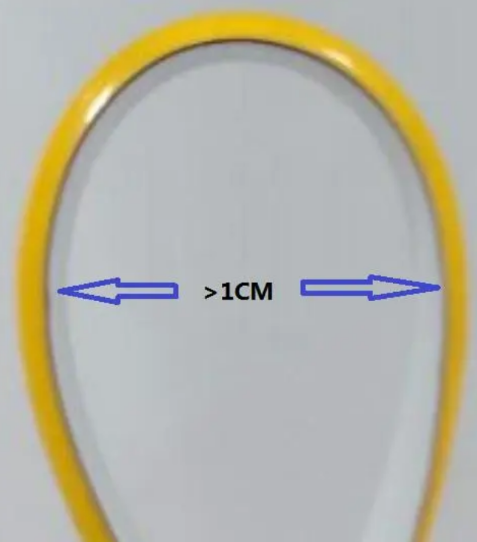

③Recommended minimum bending diameter > 1cm, as shown below:
Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
