Products360COB DC24V pixel running water COB LED strips
ScreenShot_2026-02-13_144543_285
COB LED stripsPremium

360COB DC24V pixel running water COB LED strips

Introduction of DC24V 360COB water flowing COB LED strips.

Contact Us
Product Overview
  1. High-Density 360-Chip : Features a completely dot-free (spotless) illumination effect.
  1. High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
  1. Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
  1. DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop.
  1. IC number is WS2811(12 IC/M) and with water flowing/running water effect.
  1. Higher color rendering index(CRI 90+): It is perfect for displaying true color.
  1. SDCM<3 color consistency: Few color difference between batches.
8. CE&Rohs certificated.

Product size( Take DC24V as example)

Product parameters
Input voltage
DC24V
Color temp. CCT
3000K/4000K/6000K pixel optional
Cut length
83.33mm( DC24V)
CRI
90+
LED quantity
360LEDs/M
PCB color
white( support to customize black or grey)
PCB material
Double-layer electroplated FPC
Beam angle
180°
Power
11W/M
wire lead
15cm female/male connector at both ends
Luminous Efficacy
60lm/W±10%
Length per roll
5m or customized length
IP class
IP20/IP67 otpional
PCB width
10MM
Package
static bag or customized package

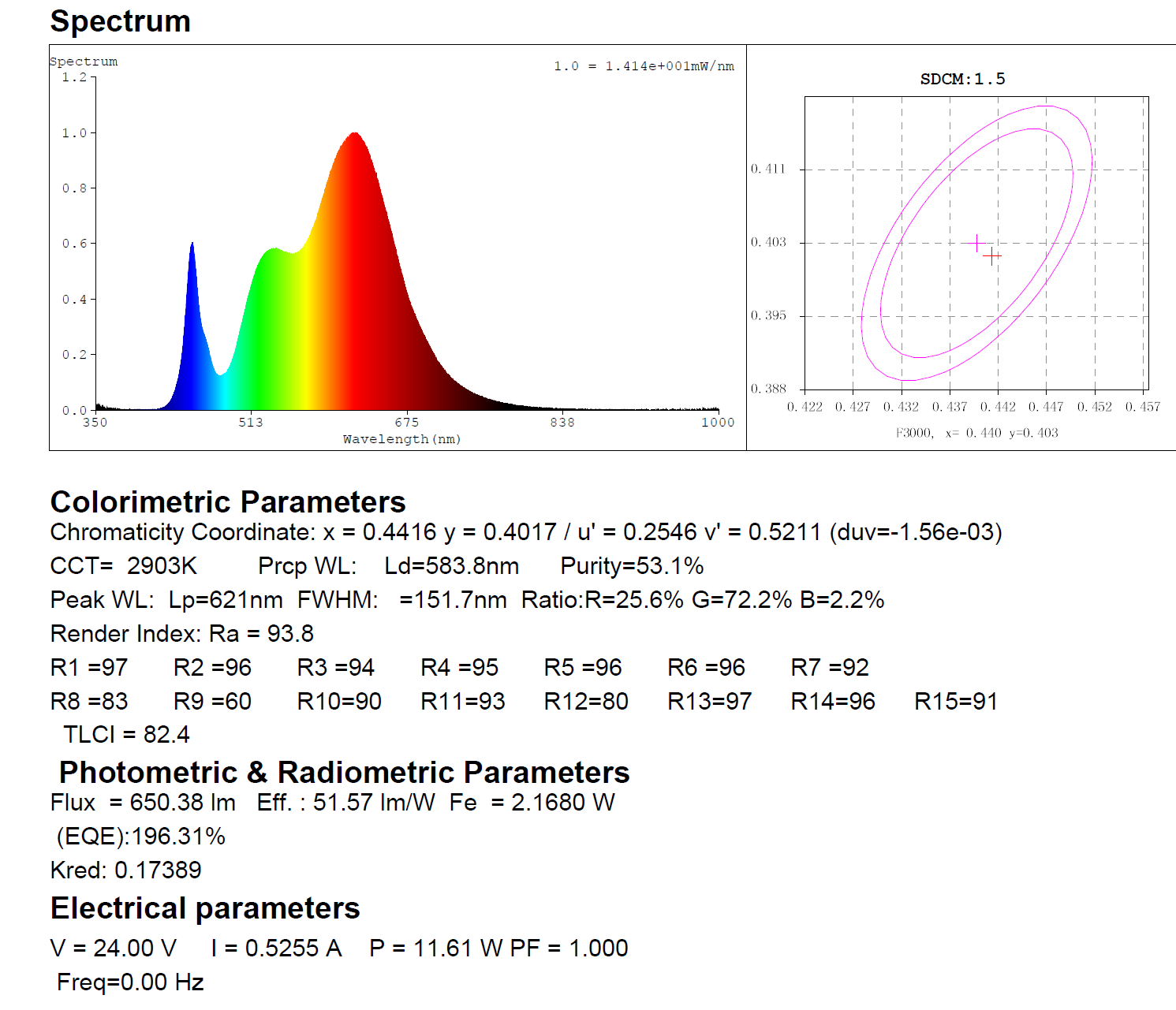

Product Spectrum Test Report


Product installation
①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

②Please clean up the installation surface and stick the led strips on a clean and dry surface.


③Recommended minimum bending diameter > 1cm, as shown below:

Thanks for your reading, for full catalog and detailed product info for other series, please contact our team. Welcome your order.
