1600 series high-density 30MM super wide PCB DC24V COB LED strip for museum jewelry display case
COB LED strips

1600 series high-density 30MM super wide PCB DC24V COB LED strip for museum jewelry display case

Introduction of 30MM super wide PCB 1600 series DC24V COB LED strip.

Product Overview
  1. Very High-Density 1600-Chip : Features a completely dot-free (spotless) illumination effect.
  1. High thermal conductivity flexible double-layer electroplated PCB: Designed with a high-heat-dissipation FPC that allows for free bending and flexible installation in various shapes.
  1. Advanced COB Technology: LED chips are mounted directly onto the FPC, achieving an ultra-wide 180-degree beam angle.
  1. DC24V Constant Voltage Design: Operates on safe low voltage with minimal voltage drop. Five row 30MM PCB design with high efficient 40W/M specification.
  1. Higher color rendering index(CRI 90+): It is perfect for displaying true color.
  1. SDCM<3 color consistency: Few color difference between batches.
  1. CE&Rohs certificated.

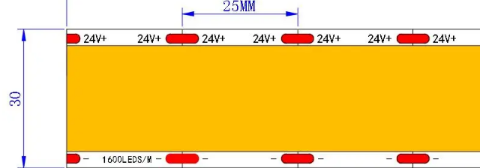

Product size( Take DC24V as example)


Product parameters
Input voltage
DC24V
Color temp. CCT
3000K/4000K/6000K optional
Cut length
25mm( DC24V)
CRI
90+
LED quantity
1600LEDs/M
PCB color
white( support to customize black or grey)
PCB material
Double-layer electroplated FPC
Beam angle
180°
Power
40W/M
wire lead
15cm 20AWG Red/Black wires at both ends
Luminous Efficacy
110lm/W±10%
Length per roll
5m or customized length
IP class
IP20/IP67 otpional
PCB width
30MM
Package
static bag or customized package

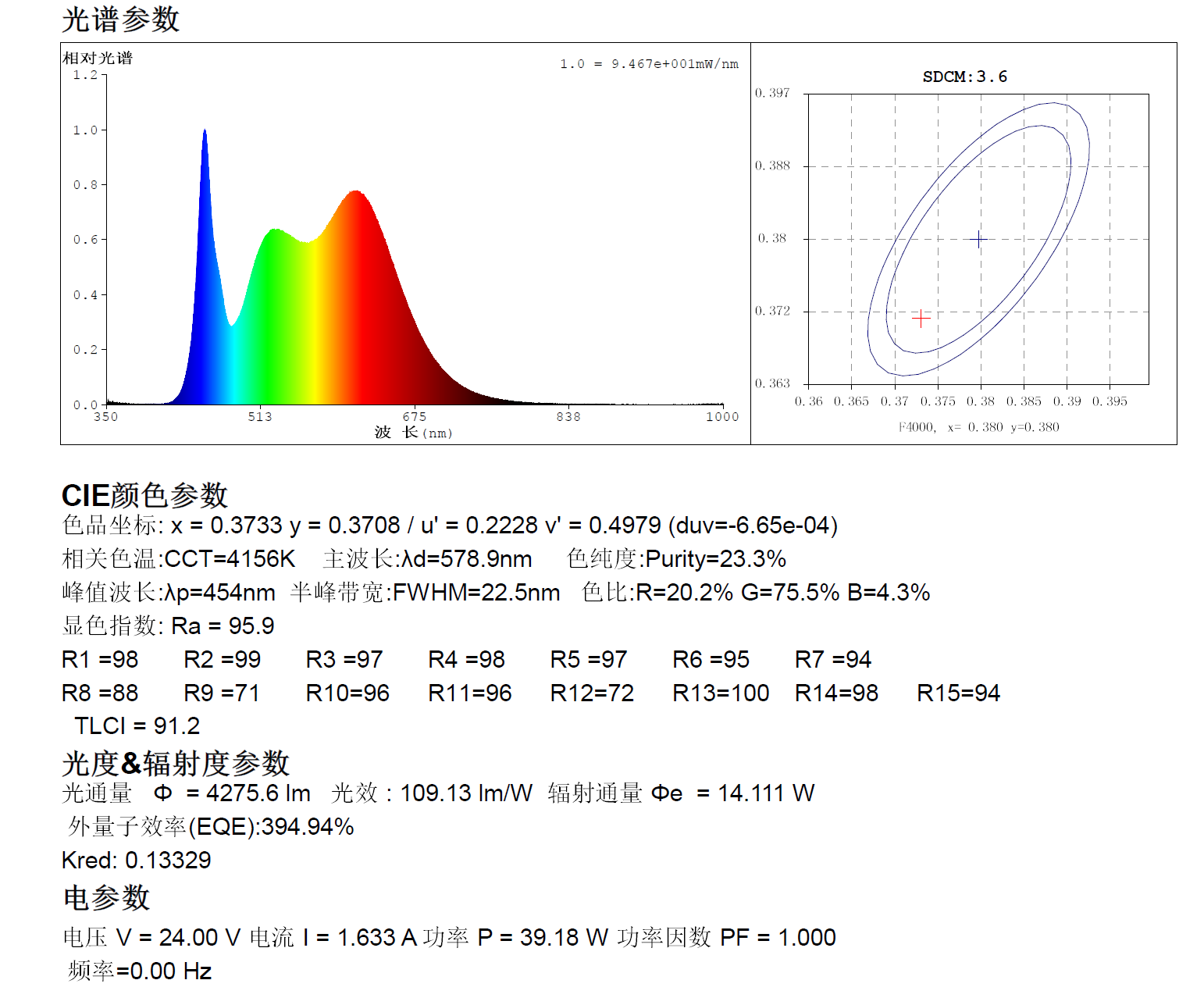

Product Spectrum Test Report

Product installation
①LED strip is low voltage product. Please don’t connect the LED strip directly to AC110/220V otherwise it will be burn out. You may need a AC/DC power adaptor. Below is a diagram for reference.

②Please clean up the installation surface and stick the led strips on a clean and dry surface.


③Recommended minimum bending diameter > 1cm, as shown below:

Thanks for your reading, for full catalog and detailed product info for other series, please contact our team（https://deccoho-lighting.com/contact）. Welcome your order.
